jasper 16m dash 13599 con coolrunner rev C e J -R programmer.... DILEMMA!!!!!!!

**lillo055** · 27-01-13

Salve volevo chiederti aiuto riguardo un RGH che mi sono apprestato a fare sulla consolle di mio figlio una:
XBOX 360 JASPER 16 MB CON DASH 13599 CB 6750
Ho provato a eseguire l'RGH 1 con J-R Programmer e COOL RUNNER rev C .
ho usato il programma j runner..
Tutto ok fino alla scrittura del file .ecc
la xbox parte con XELL funzionate ma quando poi faccio "create image" e "write nand" lo esegue ma la xbox non parte piu' ne in XELL col tasto ejecht ne dal tasto centrale in dashbord.
Praticamente il led verde di degug del cool runner si accende x quasi mezzo secondo ogni 5 secondi ( per cui dovrebbe gliccare ) ma non parte nulla.
Riscrivendo la nand con file. ECC. la consolle parte su XELL senza problemi dopo 10 ".
Il grande dillemma è: non parte per un problema di glich o perchè la nand non viene scritta bene da J Runner?
Aiutooooo...

Grazie a tutti voi x la preziosa collaborazione..

**kiron78** · 27-01-13

Penso piu' che altro che devi giocare con la lunghezza\posizione del reset. Se i dump sono buoni, il chip è programmato con i timing giusti di solito è solo l'installazione il problema (di solito)

**TheLinuxMafia** · 27-01-13

Se non viene scritta bene da jrunner sicuramente ti restituisce qualche errore, quindi in assenza di questi la console deve partire, crea il freeboot e fai delle foto del'installazione, oltre ad uno screenshot del jrunner per capire sè è tutto ok.

**lillo055** · 28-01-13

una curiosita'...ma se la consolle dopo che ho caricato il file .ECC parte subito in XELL in soli 5 secondi significa che glicca oppure no? no bovrebbe fare uguale dopo aver caricato il file updflash.bin??? (praticamente il file immaggine creato da j runner)

**The Pusher** · 28-01-13

Significa che se vuoi aiuto devi postare foto dell'installazione. Se hai fatto RGH1 risalda meglio il _pll o aggiungi un 100 nF fra il _pll e gnd

**The Pusher** · 28-01-13

Puoi inoltre usare il comodo flash da xell con una pennetta USB per scongiurare i problemi di scrittura con tale Hardware

**lillo055** · 28-01-13

x the pusher provato il flash da USB niente nessun risultato.....

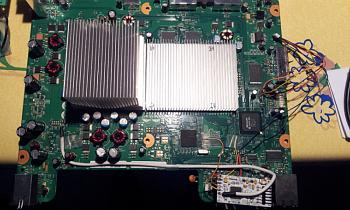

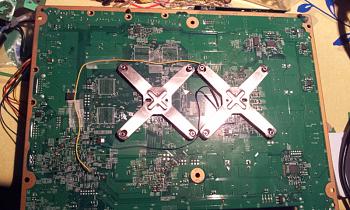

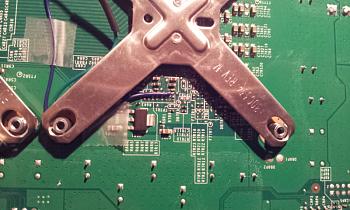

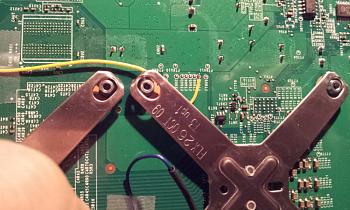

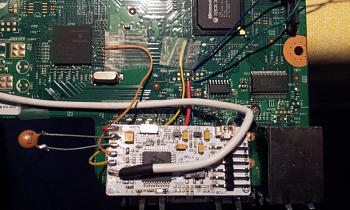

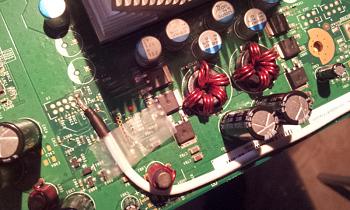

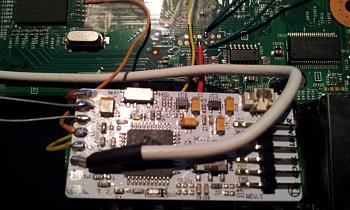

adesso provo ad inviare alcune foto.. scusate la qualita'....

**lillo055** · 28-01-13

di seguito anche il file upload.bin

---------------------------------------------------------------
