La Metro dashboard 14699 si sposa con RGH e Jtag

[guerrierodipace]

A tempo di record vengono sfornati files e tool per adeguare la vostra amata 360 dotata di RGH o Jtag alla nuova interfaccia grafica Metro.

[URL="http://anonym.to/?http://www.multiupload.com/OQPY0EY0DQ"]Xebuild 1.0 1f[/URL]
readme:

xeBuild 1.00
============


Introduction:
=============
After a lot of work, xeBuild brings together ggbuild and fbbuild into
a single application for building glitch, jtag and clean retail images.


What's New:
===========
- builds jtag/glitch/retail images
- image type specifyer changed, specify -t on command line
- all ini options are now available on the command line (no spaces allowed!)
- patch append option, -o <patchname> via command line, see NOMU/NOFCRT below
or about_patches.S for further info. Up to 16 files can be specified.
- NOMU and NOFCRT patches are provided as optional patches, please use the
-a flag on the command line (ie: -a nomu and/or -a nofcrt) if you want
to use them, nomu disables jasper NAND memory unit, nofcrt will attempt
to disable FCRT file (not needed if yours isn't corrupt)
- nonandmu has been changed to nandmu so it's behavior is inverted
- virtual fuses is no longer being pursued for glitch images as correct
cpu key is already required to build working trinity images. They remain
for JTAG images.


Current Limitations:
====================
- STAY THE HELL OFF LIVE! Nuff said, we're not you're mum.


How To Use:
===========
- See individual folders for lists of files to provide
- if desired provide replacement cpu and 1bl keys in text files
- open a command window in the xeBuild directory
- on the command line type, for example:

example - if you provided keys in appropriate text files

xeBuild.exe -t glitch -c falcon -d myfalcon myfalconout.bin

-t glitch = build a glitch type image
-c falcon = use falcon bl and patch set
-d myfalcon = a folder is present called "myfalcon" with per machine files, this uses it
myfalconout.bin = the file that will be produced

- type xeBuild.exe -? for command line info


Example:
========
-take original console dump, put it in mytrinity folder as nanddump.bin
-set CPU key and 1BL key in ini file, verify LDV from nanddump.bin matches console fuses
if not set cfldv in ini file
-build (xeBuild.exe -t glitch -d mytrinity -f 13599), flash and hopefully life is good


.ini files:
===========
Just a word on the format... the ini parser is not very robust, the files need
to be plain ASCII, everything after a ; on a line is ignored, and spaces are
not acceptable (they get removed).

Things like CPU key and 1BL key, if present in the per box ini file need not be
placed anywhere else.


Note:
=====
- DON'T USE THIS UNLESS YOU KNOW FOR SURE THAT YOU NEED IT! Using an incorrect
controller config can result in problems remapping bad blocks (even manually.)
If you have a 16M jasper, an additional build type has been added
'jaspersb', by default the image will be built for jasper with big block
controller (config 00023010), use this alternate switch to build for small
block controller (config 01198010.)


Multi build/options example:
============================
when you specify -f 13599 on the command line:
13599\filelist.ini
is parsed instead of data\filelist.ini

Also the bin directory is used from
13599\bin\
instead of
bin\
allowing anyone to create multiple builds without multiple instances or
rebuilds/hex edits/hacks of the main app.

The example provided is the last version of 13599 patch set from dash launch and
other files to build freeboot 13599

example use:
------------
xeBuild -f 13599 -d myfalcon x13599out.bin

-f 13599 : use .\13599\filelist.ini, and .\13599\ for firmware files, .\13599\bin\ for patches
-d myfalcon : use .\myfalcon for per build files (cpu key, keyvault, security files, ini etc.)
x13599out.bin: override auto generated name and produce .\x13599out.bin as the final NAND image

note, if -d ***** is not specified it will still use the original /data and /bin dirs


Credits:
========
Without ikari this would not have been possible, thanks!
__ ____ ___ ___ _____
/ _|_ __ ___ ___| __ ) / _ \ / _ \_ _|
| |_| '__/ _ \/ _ \ _ \| | | | | | || |
| _| | | __/ __/ |_) | |_| | |_| || |
|_| |_| \___|\___|____/ \___/ \___/ |_|
[v0.07 - inspired by ikari]
R.I.P.
No this isn't freeboot, it is a clone and has always been since the last
release of ibuild.

Thanks and greetz to everyone who has contributed to hacking this
wonderful machine. Thanks to the engineers and countless others who made
the machine what it is... we only wish they had listened and RROD was
not a problem. If we were to list everyone here, there would be no time
left to play on the machine!

Thanks to Free60 and Redline99 for providing usable xell builds <3

Big thanks to the folks at #freeboot on efnet for the tireless
hours of help you all give freely. Thanks to the testers who tirelessly
made sure stuff worked. Thanks to rgloader for doing the work yourselves,
there *is* no spoon, just a glitch in the matrix.

Don't believe what random people *cough* write on forums ..

-----
//2011
-----

Changes:
========
1.00
- hotfix - jtag images were being created with incorrect patch file number (xexp1 instead of xexp2)
1.00
- gets security files from nanddump.bin and verifies them (odd.bin is currently not processed)
- option added to disable extracting security files from nanddump.bin
- decrypts perbuild security files for verification (crl/dae only currently, updater files work too)
- zero nonce data in bls before checking crc (inlcuded file lists updated with new crc and explanation)
- fixed a bug with mobile extraction
- fixed a bug with fsroot processing
- (glitch) dynamic SMC patcher, no longer limited to hard coded hash/offsets
- added more SMC hashes to verify known clean SMCs
- will attempt to decrypt external encrypted smc.bin if needed
- whitelist more chars in the file list parser
- altered so that pairing value will be retreived from nanddump.bin even if ldv is set in ini
- dual CB is dictated by ini, "none" filename indicates single CB (jtag does not use dual CB)
- increased logged info when adding files to flashfs
- odd.bin in encrypted (only!) form is now handled (from file or nanddump.bin)
- ini options are now available as -o options on command line
- added -t command line flag for glitch/retail/jtag selection
- JTAG image creation merged
- separate retail/glitch/jtag into individual per-firmware ini lists
- added -noenter command line option to suppres application asking to press enter on completion
- added proper errorlevel exiting, 1=usage/commandline error, 2=file write err, 3=image build error
- add 'cygnos' and 'xellbutton' options for glitch images with appropriate bl patches (either may affect fat glitch boot rate!)
- non-critical spare data fix to the way smc config is added to image
- update freeboot core and glitch base patches to accept a secondary xell poweron reason
- rewrote extended.bin handler, given an invalid/undecryptable file it will create a empty extended.bin
- rewrote keyvault handler, can decrypt and verify kv.bin when it's provided encrypted
- added patch append -a command, and converted nomu and nofcrt to optional patches
- added simple explanation of patch file formats in about_patches.S
- changed nonandmu option to nandmu so it can default to false
- added corona and winchester console types, currently not supported but there if needed
- add 14699

0.33
- corrected bug with ini parsing and dvd region (and others) left blank
- add 13604

0.32
- slim/fat glitch image building (based on fbbuild 0.32)
- builds retail images with -retail command line option
- added autopatch smc option in per box ini file
- extracts pairing value and highest LDV from nanddump.bin
(ini cfldv setting overrides nanddump ldv)

[URL="http://anonym.to/?http://www.multiupload.com/YFDTJ5HYZC"]Xebuild GUI 1.0[/URL] dal coder Swizzy's
readme:

Swizzy's xeBuild GUI Version 1.0
---------------------------------

****** If you find a bug, let me know! you can reach me on: [email]admin@swizzy.se[/email] ******

****** NOTE: I did NOT create xeBuild! i merely made a frontend/gui for it! ******

================================================== ====================
Requirements - What you need to do have in order for this to work!
================================================== ====================
- Microsoft .NET Framework 3.5 or later
- Your CPUKey
- A dump of your nand

================================================== ====================
Overview - What it does
================================================== ====================

- This is a frontend/GUI for xeBuild, what it does is make it easy
for you to select most options that you might need, such as Motherboard,
SMC hack for freeboot, image type etc. etc.

- It is able to check what SMC hack you have previously used for JTAG
it's also able to tell you what SMC version you have, and if it's a
JTAG, Clean/Retail, Glitch or Cygnos patched SMC

- If you put any of these files next to the executable it'll use them
automaticly:
SMC.bin - Custom SMC of your choice; ONLY USE THIS OF YOU KNOW WHAT
YOU ARE DOING!!!!
Xell.bin - Custom Xell of your choice; ONLY USE THIS OF YOU KNOW WHAT
YOU ARE DOING!!!!
cpukey.txt - It'll read the first line of this file as CPUKey
flashdmp.bin - It'll load this as source nand
Default.xml - It'll load any preset settings from this file
options.ini - It'll load any custom settings from this (for xeBuild)
launch.ini - Settings for Dashlaunch, if you choose to use this setting
it'll include this file in the built image

================================================== ====================
Notes about building retail images
================================================== ====================

Retail images can be built using this gui, it includes common retail
SMC's i've extracted myself, i make no form of garantuee that these
are safe to use for your console, some machines might not like the
bootloaders etc. which are used by default...

================================================== ====================
Notes about LDV
================================================== ====================

There are 3 ways you can get your LDV value:

1. Use Xell and manually count the ammount of "f" on fusesets
07 and 08, the total here is your LDV value.
2. Use Xell and a network connection, doing this the app can
read fusesets for you and read cpukey aswell as check what ldv your
Xbox 360 should have automaticly for you (this option also sets both)

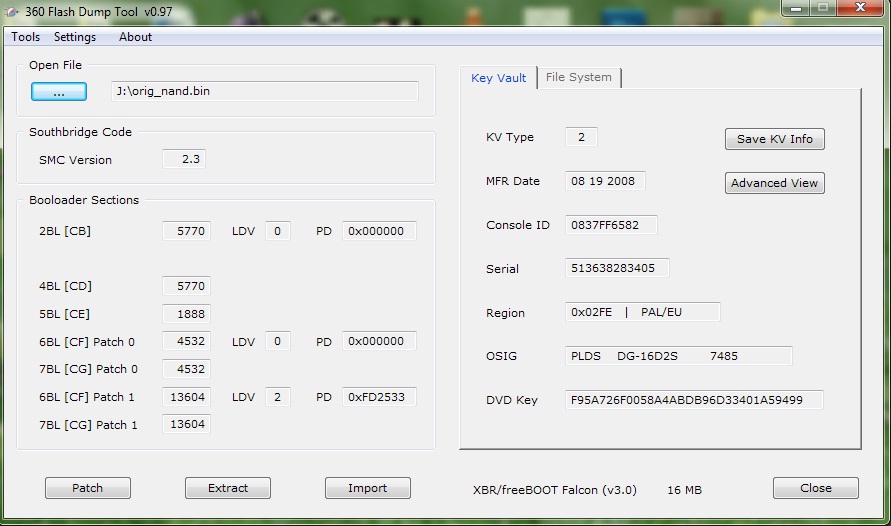

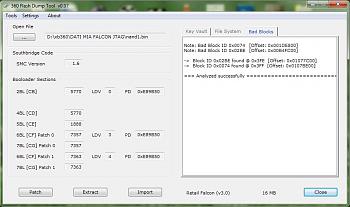

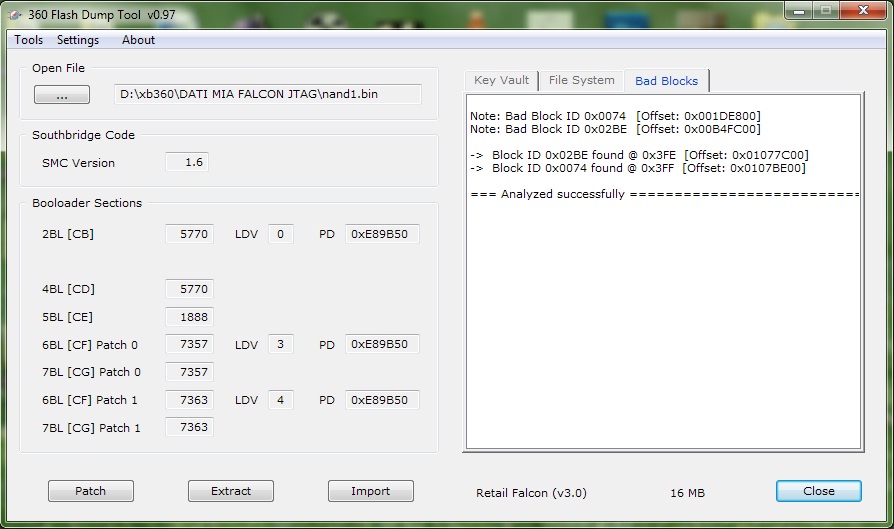

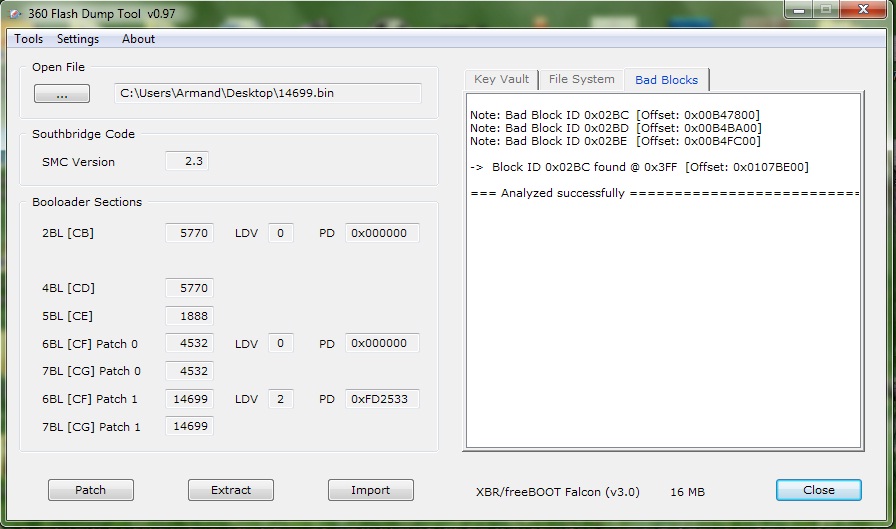

3. Use 360 Flash Dump Tool and check which value is the highest, this
is the one you will want to be using

Normally (if you have a good dump that does NOT include data from
.ECC file created using RGH python script) xeBuild should be able
to extract this value on it's own, if it can't just follow the
instructions above... if you don't understand these instructions,
ask google!

================================================== ====================
Notes about FCRT patches
================================================== ====================

This patch removes the need for FCRT.bin in nand, however, it will
NOT work for everyone, it's been enabled in the default configuration,
but should be disabled if you are using a machine with a Liteon DG16-D5S
FW: 1175, it's been confirmed by me that it doesn't work on these drives
all others i've tested has worked just fine, however it can still be a
problem for you to have this activated, disable it if games don't work
from discs (if you use this feature!)

================================================== ====================
Changelog - New features and bug fixes
================================================== ====================

**************
* KNOWN BUGS *
**************
- Whiles checking SMC the app may sometimes crash if using a bad dumped
image, or an image with badblocks in it...

*******
* 1.0 *
*******
- Initial release
- Dashlaunch 2.27 is the version included with this release
- xeBuild 1.0_Hot Fix is the version used with this release
- This version supports building the following Dashboard versions:
- 2.0.7371.0 - Retail images ONLY
- 2.0.9199.0 - JTAG images ONLY
- 2.0.12611.0 - JTAG images ONLY
- 2.0.12625.0 - JTAG images ONLY
- 2.0.13146.0 - JTAG images ONLY
- 2.0.13599.0 - JTAG, Retail and Glitch images
- 2.0.13604.0 - JTAG, Retail and Glitch images
- 2.0.14699.0 - JTAG, Retail and Glitch images
* Files for 2.0.14699.0 are included *

================================================== ====================
Credits - Thanks to:
================================================== ====================

- cOz - Maker of Dashlaunch, been talking ALOT to him asking for advice
- Razkar - Helping me find bugs and giving me general advice/ideas, along with
releasing this app on logic-sunrise!
- Jack Nepacha - Making my new icons, thanks mate
- Anyone else that has helped me with anything such as tests, bug finding
and such that is not mentioned above, THANK YOU! without testers this app
would be pretty much useless compared to the other GUI versions out there

[URL="http://anonym.to/?http://www.multiupload.com/GFYDRC6SU1"]Dashlaunch 2.27[/URL]
v2.27
- removed FCRT patch (was not compatible with 1175 drives)
- installer: revise patch checks to only check base patches
- installer: conform to xebuild's base+patch extension method, copies addon patches to
base as needed
- add 14699
readme:

Dash Launch 2.27
----------------

****
at time of this writing, this is ONLY compatible with:
"freeBOOT": 9199, 12611, 12625, 13146, 13599, 13604, 14699
"ggBuild" : 13599, 13604, 14699

read info_launch.ini for info on options and setting launch parameters.
****
================================================== ==============================
important note about the new keyswitcher
================================================== ==============================
Retail encrypted xex that are not validly signed will not load due
to the way the new keyswitcher works.

================================================== ==============================
Overview - what it does
================================================== ==============================
- It will launch a XeX or CON file from the path you specified in launch.ini
as long as it's valid
- Depending on the button you hold when the xbox is trying to load the NXE, it
will divert to the xex/con tied to that button or return to default as
defined in launch.ini
- At boot time it is possible to subvert default item and/or NXE loading, but
you must wait until the controller syncs to do so, and the controller must
sync to the top left quadrant (player 1.)
- Depending which button is held when closing miniblade in NXE (use Y button to
close, release then hold a QL button) it will quick launch a CON or XEX
from your ini file
- allows one to patch kernel/xam at bootup with a freeBOOT patch style bin file
from usb or hdd (in that order) must be in root of the device and be named
"kxam.patch" and be no larger than 0x4000 bytes. Again, kxam.patch binary
format is the same as a compiled freeboot patch bin, but uses real virtual
addresses rather than offsets - see 1.0 release for a windows patch builder
- with the included patch set, launch.xex acts as a helper to detect when
xbox1 emulator loads, allowing memory unlock patch and xbox1 emulator
to function together

================================================== ==============================
Installation
================================================== ==============================
- have the required freeboot version installed on the console

- get the installer to a place where you can run it, and do so. Follow onscreen
instructions. The installer will prompt you if it needs to update the
freeboot patches and will give you an opportunity to configure the new
options

- edit and place launch.ini where you would like it, see note below as well
**See inlcuded sample and the info ini which describes the options allowed**

note: the installer includes upgrade paths for dash launch 1.0 users, it will
optionally update launch.ini files wherever found to use the new path names

================================================== ==============================
Updaters and Avatars
================================================== ==============================
- this version of dash launch contains an update blocker that is enabled by
default. There are two ways around this if you wish to install the bits and
pieces used by the dash for kinect and avatars
1 - place the updater that matches this version on removable media, and
rename the folder from $SystemUpdate to $$ystemUpdate
----OR----
2 - place an ini where dash launch can find it and set the noupdater option
to false - noupdater = false
****
NOTE that some games WILL prompt you to update the console if avatars are
not installed, this doesn't mean they have an update to actually put in, it
just means it needs avatar/kinect bins/resources to run
****

================================================== ==============================
LIVEblocker
================================================== ==============================
- if you are like me, and keep your consoles off the net then this option is
for you. It's capable of blocking the resolution of the LIVE specific
servers and does so by default, with an additional option in the ini file
it will attempt to block access to all MS servers. The default option is
set up to block only LIVE servers, which still allows programs like FSD to
access covers and such.

================================================== ==============================
Important - going to NXE
================================================== ==============================
- if you need to go back to NXE and have default item set in ini, HOLD RB while
exiting game via miniblade or exit using one of the miniblade options like
family settings or system settings

================================================== ==============================
INI notes
================================================== ==============================
-it's possible to have multiple ini files, priority is: USB, HDD, BB MU, FLASH
(** it is NOT recommended to launch USB con/xex from hdd ini **)
the first one found on the devices in that order will be the one used.
-see [url=http://code.jellycan.com/simpleini/]Jellycan Code - SimpleIni[/url] for more info on the ini parser

-if you find your ini file is not working, open it in a hex editor and ensure
that windows didn't convert it to a non-ASCII format by putting identifyer
bytes at the beginning of the file. The first charater in a hex editor
should be whatever the first character you have in the ini file, not
non-character codes like 0xFF or similar

================================================== ==============================
Caveats
================================================== ==============================
The work herein is presented as-is, any risk is solely the end users
responsibility. While all of us are sorry when unforseen things happen, not
every situation or mistake can be accounted for before they have been
spotted. Please use responsibly.

================================================== ==============================
Thanks
================================================== ==============================
-Big thanks to those who opened the way and those who made it even more usable.
-Thanks to Tux, Arbiter, stk, the2000, Corrupted, tk_saturn and Toddler for all
the bugs you caught trying to sneak by!
-Thanks AmyGrrl for passing along the glitch and new ideas
-Thanks to Tux, Ironman, JPizzle and Dionis Fernandez for helping procure a
Jasper big block console to extend testing and fix NAND MU corruption bug
Dionis - you went above and beyond!
-Thanks to vgcrepairs for providing the cygnos, dash launch likely wouldn't
exist without one.
-Thanks to FBDev and mojobojo for the data used for the patch options
-Thanks to sm32
-Thanks to unknown, you know why
-Extra Special thanks to SpkLeader, Boflc, and LordXBig!
-Big thanks to Swizzy, the least bit for debugging readmes!
-Thanks to fbbuild, keeping us on our toes and up to date!
-Thanks to xbox-scene for always putting up a release thread announce!
-Greetz to XeDev
-shouts out to E Nellie and D33per, this a sourceless release!

~brought to you by cOz~
07/12/2011

================================================== ==============================
Known Bugs
================================================== ==============================
- Thanks to excellent testers, none were corned by the time of this writing. If
you find any during use, find the release thread at xbox-scene and please
report them there.
- in freestyle 1.7 and earlier, there was a minor glitch that caused console
crashing for some people under rare circumstances, if you haven't updated
to RC1.8 or newer please do so.
- corrupt games when launched return to NXE to display the corrupt game UI

================================================== ==============================
ChangeLog
================================================== ==============================
v2.27
- removed FCRT patch (was not compatible with 1175 drives)
- installer: revise patch checks to only check base patches
- installer: conform to xebuild's base+patch extension method, copies addon patches to
base as needed
- add 14699

v2.26
- correct jtag/glitch wording in installer patch updater
- fix compare with glitch machine, now accurate when it checks patches for update
- add fcrt removal patch (and correction)
- rebuild to hopefully improve stability (less optimization)
- changed contpatch to only patch ID bytes to 0xFF
- fix sonic, more thoroughly hooked disk verification (thanks again Nate!)
- add current launch.xex version display to installer, add versioning
- add note about encryption on modified retail xex
- added '$' to permitted chars in launch.xex ini parser

v2.25
- added Trinity arcade memory unit to dash launch as IntMu:
- can update ggBuild type patch sets
- add 13604
- patches updated to remove E66 (dvd code exec) errors in kernel

v2.24
- hddalive was defaulted to true instead of false, fixed
- xell launch now shuts off usb device (fixes issues with xell reloaded)
- xell launch simplified to allow for variable sized xell bins
- added jtag debug support to patches and export var (thanks Nate!)
- reworked devkit signed xex loading. Faster, dll dev xex working again (thanks Anthony!)
- fix forza 4 (and maybe others - thanks Nate!)

v2.23
- added hddalive (2.23b fixes this)
- added 13599
- relocate external files so old files will no longer be used accidentally
new path is \default.xex dir\VERSION\files
ie: GAME:\13599\patches_jasper.bin

v2.22
- resolving 'localhost' when the router forwards it to the internet or there is
no network at all... bad idea game devs... fixed (Yars', maybe others)
- button handler now more reliably removes Y and A mishandling when held on
miniblade exits
- added new note to readme regarding update prompts and avatar data missing
- hopefully extracted new games are now working fine, instead of GOD only
- potential bug corrected in 12611/12625 patch sets
- add 13146 compatibility
- all patch sets updated to fully remove xex bound checks (ie: default.xex
on root of USB causing E71)
- "remotenxe" option added to ini(thx adihash!)
- windows button on remote always boots to NXE/media center now(thx adihash!)
- added "guide" and "power" path options to set boot time default override
- changed kxam.patch, first .long must be the kernel version the patches match
- added a check to kxam.patch data to abort on invalid address
- added "nohud" option
- added installer check to verify at least the 1BL segment of patches before
installing, will re-ask and warn of possible corruption/brick

v2.21
- fixed noupdater option, readme is accurate with regards to updates now (sorry)
- fixed dvdexitdash option, no longer conflicts with using miniblade to exit NXE
should only affect DVD launched from NXE (note this affects DVD games too)
- fixed a glitch with unhandled exception logging when occurs in kernel
- revert to original fileExist() method

v2.20
- export option info along with the rest of dash launch info struct export
- add multi version compatibility to installer and plugin
- add 12625 patch set and offsets
- new LIVE content hook patching, does auto yaris swap as well as extracted XBLA
should work more consistently (hopefully)
- added unhandled exception handler, dumps except info to UART/file and exits
to dash/default item when apps don't have their own exception handler
(instead of crash), disable by setting 'exchandler = false' in ini file.
- added ini path setting (dumpfile) for capturing crash logs to a file,
capture device must be connected at console boot time
- added 'safereboot' option for those who have JTAG that have applied
blackaddr's smc reboot fix, instead of 'hard' reboot
- added option to enable debug strings to print to UART
- adjusted patches to remove default UART hooking (less chance of string
collision/overlap using DbgPrint via debug out option)
- corrected a bug in the flasher ini update settings in regard to noupdater,
it was setting nosy***it instead of noupdater value
- added live "blocker", reroutes requests to resolve DNS names to loopback
- added "livestrong" option to use an alternate list of DNS to block
- added ini option to set how long buttons are watched for at boot time
- embedding current versions external files into installer, no more messy
directory; original paths still work and take priority over embedded files

v2.11
- fixed xbox1 launches (thanks folks at x-s and fsd for reporting)

v2.10
- reworked hooking to be a bit more dynamic and simpler to update
- ini parser fixed, glitch when comment line last line with no blank line after
(thanks Toddler!)
- disables updaters (DA2 and other disks; safety)
- minor tweaks to boot time delays, further improves on previous autologin issue

v2.09 (beta)
- moved strictly to C, much smaller DLL
- correct bug with busy CON/sometimes ignoring ini for boot time default item
- made boot time quick launch buttons more reliable
- added 1s delay to resolve autologin at boot issue and slower USB hdd issues
- patches updated to remove min version check (DA2)

v2.08
- correcting for a glitch where launchdata should be cleared between titles but
isn't; fixes launching some games twice in a row (thanks stk and FSD!)

v2.07
- fixed media center extender (thanks jester and antman)
~hopefully this is the last whitelist option needed
- added option "nosy***it" (thanks rhai)

v2.06
- update to fbbuild 0.11 patches
- fixed bug with fatal freeze options
- changed installer to use zeropair CB version to determine patch set
- added new options dvdexitdash and xblaexitdash (thanks AmyGrrl)
- added regionspoof, dvdexitdash and xblaexitdash to ini updater
- added instructions to this readme regarding boot time buttons and diagnosing
non-ASCII ini files

v2.05
- added AP25 xex priveledge filter (fix AC:B GOD/xex, maybe others)

v2.04
- fixed a glitch with launching kinect games when a default item is set

v2.03
- updated for 12611

v2.02
- added version info to data struct exported at ordinal 1
- made number of times button holds are scanned variable, longer window
at boot time to sync controller and hold a button
- added region spoofing for XGetGameRegion
- DVD video play from NXE now plays DVD regardless of default setting
(thanks krizalid!)

v2.01
- corrected flash mu mount point (thanks Antho02 at l-s)
- added kernel version check to installer as some xbr using folks seem incapable
of reading the first line of this file

v2.0
- plugins now use logical paths just like quick launch buttons
- added common (9199) content and ping limit patches as options
- mostly runs in system threads, startup completes while bootanim runs
- completely subverted dash.xex, no more CD issues or NXE split seconds
- removed insistance on 0/1/2 paths and reliance on CaPs to detect
- return to NXE via miniblade for system settings and others works w/o using RB
- added big block NAND mu as possible device
- optionally subvert Y to exit miniblade while in NXE to load button/default
- added xell loader to patch set and included a xex to load xell
- removed reboot on fatal error from patches
- included reboot/shutdown on fatal error as settings
- installer onscreen output cleaned up, now shuts down console at end of install
- added ini file updater to installer
- added patch updater to installer

v1.0
- added other devices for launch targets
- added flash for location to load launch.ini
- added flash installer supports flashing launch.xex and launch.ini
- with help of freeboot patches, fixes issues with xbox1 emulator on memory
unlocked patchset
- overhaul ini parser with simpleIni, support for most buttons and a default
- added dll/plugin loading support
- added hooking/return to launch app instead of NXE (hold RB to bypass)
- added kernel/xam boot time/one time patch engine
- added export to allow the loading of other system modules

v0.02
- added a small delay to allow XBR users to launch CON
- implemented a simple ini file parser and fileExist
- auto detects LIVE and XEX2 to use the appropriate launch method
- fails to dash reliably now

v0.01
-initial release

Dashlaunch e Xebuild sono già inclusi nel pacchetto GUI

la nuova dashboard 14699 è dunque già pienamente supportata, speriamo solo non ci siano i bug di gioventù

---

dato che è stato richiesto il significato della voce "jasper 16MB SB" nella Xebuild GUI, ecco l'elenco dei flashconfig:

FlashConfig - System Types
01198010 - Xenon, Zephyr, Opus, Falcon
00023010 - Jasper 16mb
008A3020 - Jasper 256mb
00AA3020 - Jasper 512mb

evidentenmente sono state trovate Jasper 16MB con anche il primo tipo di flashconfig

[ZioPippoSSJ]

Test test test...oggi pomeriggio

[Fabry151515]

io provo in mattinata.. vediamo... hehehe

[Luke69]

Probabilmente aggiorno di stamattina...se ho tempo...
Ho SOLO una domanda...posso usare il mio dump 13604? Non è che poi devo alzare il LDV come succede a quelli che hanno creato il freeboot 13604 dal dump 12xxx??

EDIT:
mi hanno confermato che si può usare il dump 13604 senza avere magagne ^^

[Barbutus]

che bella notizia

[guerrierodipace]

provato su slim
aggiornando da 13604
aggiornare è semplicissimo, veramente semplice con la GUI, basta indicargli dov'è la nand e inserire la cpukey o leggerla via browser se hai la 360 in rete con xell aperto

[razor92]

raga per aggiornare si deve aprire la console? o si può fare tutto da esterno?

[Luke69]

Tutto da usb, flashi l'immagine o tramite flash 360 o da Xell con RawFlash v3 ^^

EDIT:
ho messo tutto (si reperisce facilmente da LS), ma la 1bl key si può anche non cambiare? Nel readme dice che non è obbligatorio...come neanche la cpu key...però quella l'ho cambiata

[ceppe90]

Bello non vedo l'ora di provare

[razor92]

ottimo, c'è qualche guida? nn sono esperto...

[Raiden]

arriveranno

[ceppe90]

Allora aspetto la guida sempre meglio XD

[brundu]

bella notizia provero' appena possibile

[gianvolpe]

installata sembra andare tutto liscio

[cool76]

una volta ottenuto il nuovo file image.bin....come lo do in pasto alla console??

[altix]

non visualizzo gli avatar aggiornando da 13604 come si risolve ? grazie

[Armand]

ragazzi piccolo problema..ho una falcon jtag con dash 13604. vedendo il mio dump originale (il 7357 che aveva la console a suo tempo) con flash tool i bad blocks sono a 74 e 2BE. ho fatto adesso un dump della 13604 con nand flasher 360. vedendo questo dump con flash tool non mi da bad blocks..ho provato a creare la 14699 con il dump 7357 e mi da errore perchè dice che l'smc non è patchato..creandolo invece col dump 13604 non da errori ma le posizioni dei bad blocks sono diverse. Allego screen dei dump 7357 13604 dumpato da xbox e 14699 creato con il nuovo tool
dump 7357

dump 13604

nand 14699 creata con tool


grazie

[guerrierodipace]

una volta ottenuto il nuovo file image.bin....come lo do in pasto alla console??

o rawflash 3 rinominandolo e da xell o io preferisco nandflasher360

[Barbutus]

ragazzi un consiglio... in questi giorni finalmente eseguirò l'rgh, ho una console phat jasper con nand da 16mb e Dashboard 13604 (senza dae.bin aggiornato), mi consigliate di fare un backup della nand attuale ? oppure aggiorno con la nuova dash, eseguo il backup della nand e successivamente proseguo con l'rgh ?

[cool76]

il nuovo file image.bin come va rinominato?grazie
