Discussione: Jasper 512mb cb6754 R-Jtagnon avvia Xell

  1. 10-12-13 #1
    tonyamme
    tonyamme è offline
    Junior Member
    Data Registrazione
    Dec 2011
    Messaggi
    45

    Jasper 512mb cb6754 R-Jtagnon avvia Xell

    Ciao a tutti i membri del forum!
    Apro questo Thread che in realtà è simile all'ultimo che ho aperto.
    La questione è questa: sono alle prese con il mio secondo R-Jtag.. il primo non è andato a buon fine perciò, volevo farmi del male col secondo.
    A parte i preamboli leopardiani, ho in mano una jasper ds 512mb e cb 6754; ho letto la nand, ho scritto xell e poi ho installato il chippone r-jtag v1.1.
    Premetto che ho già fatto numerosissime prove con i vari settaggi ma xell non ne vuole sapere di avviarsi.

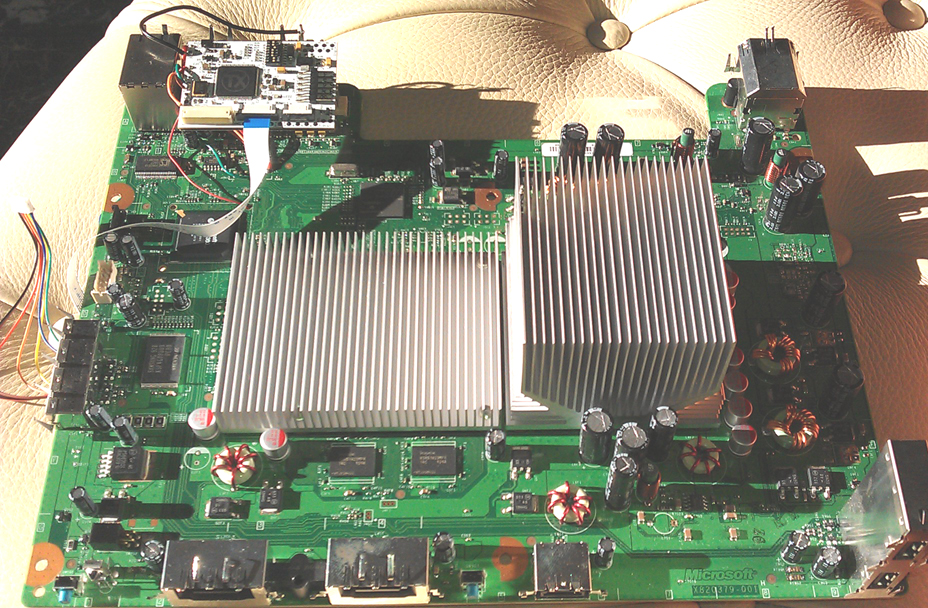

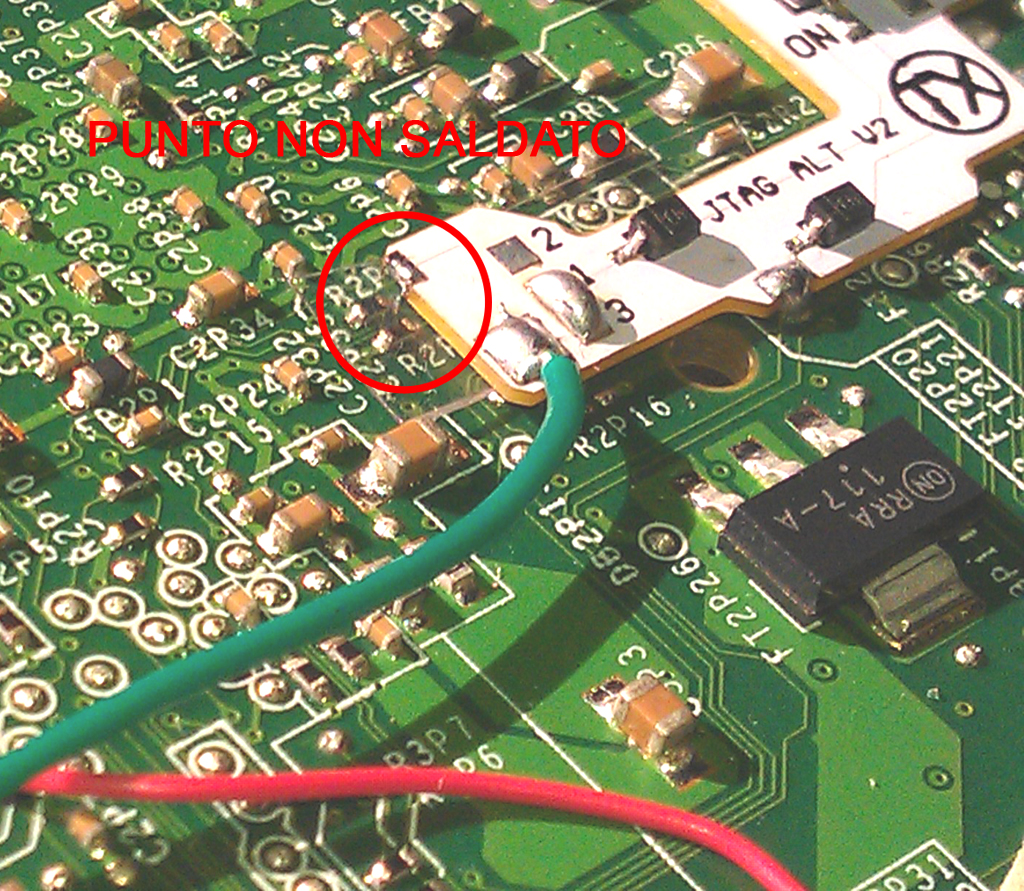

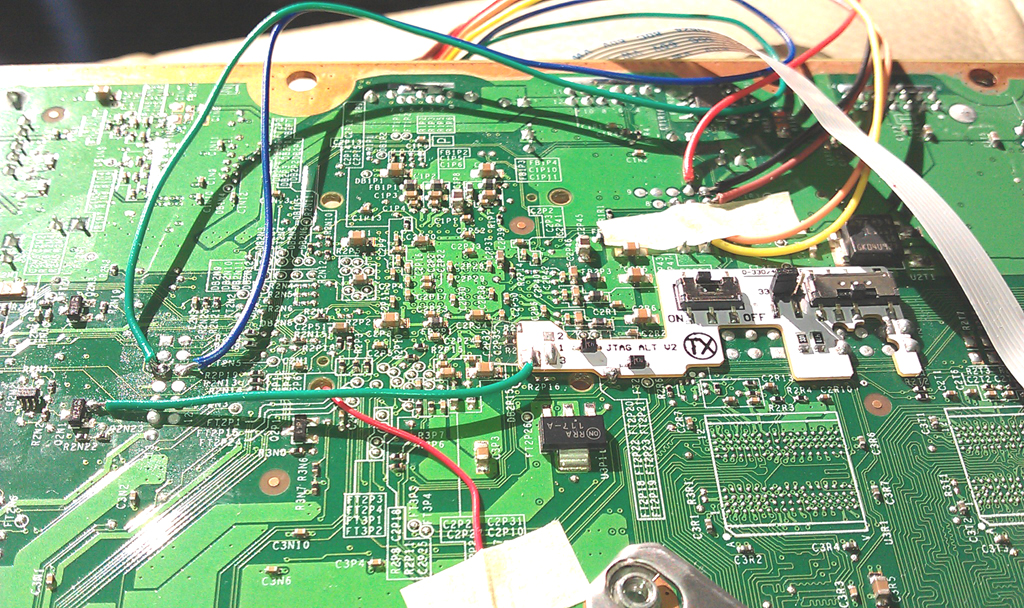

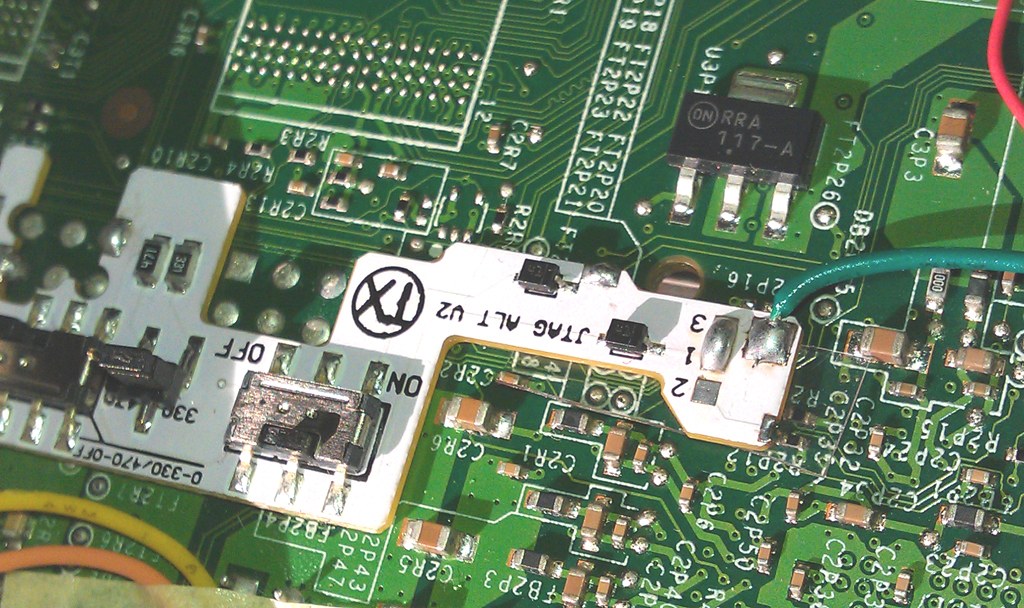

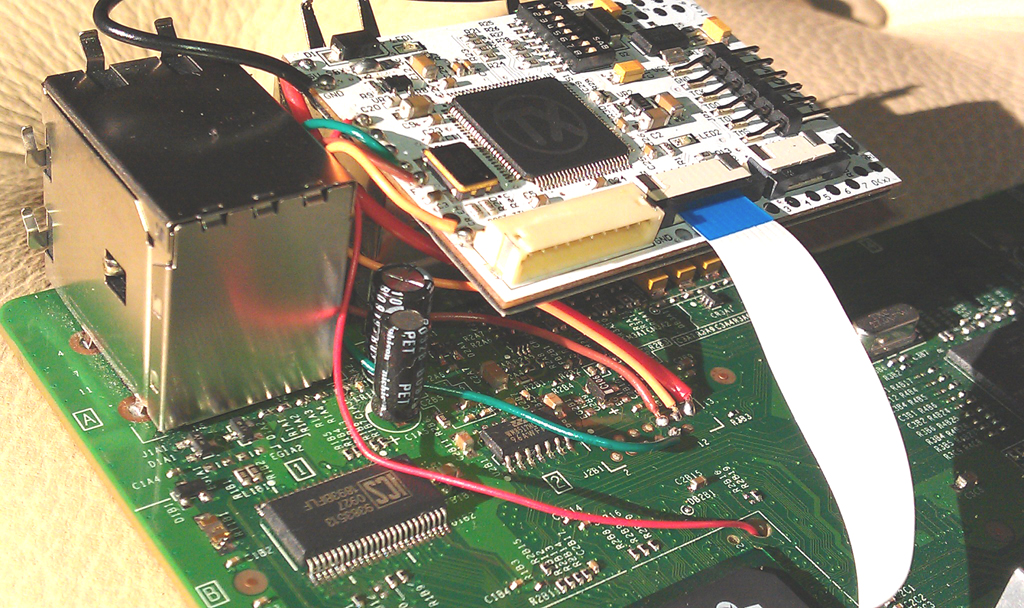

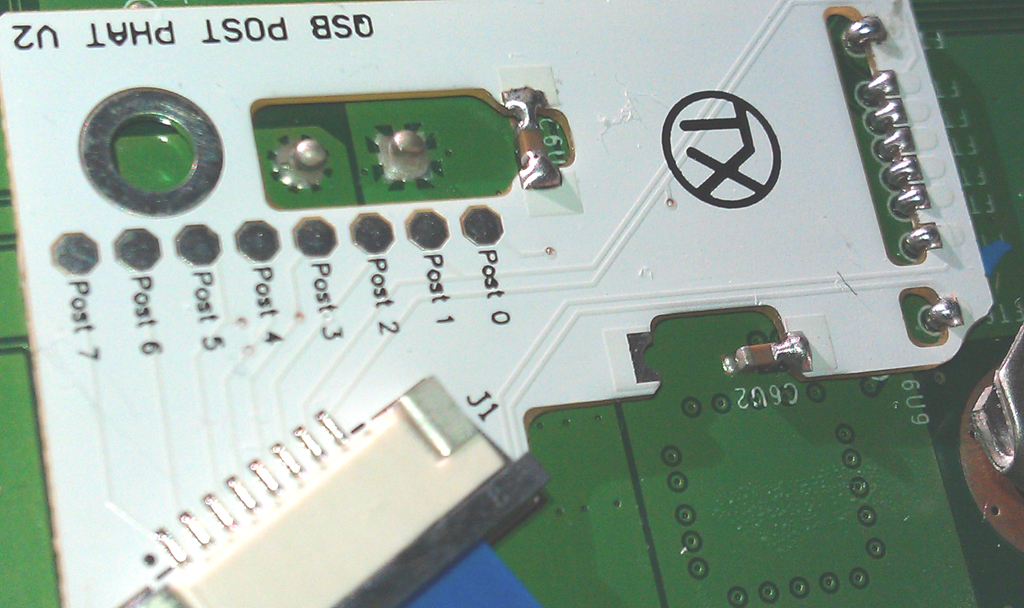

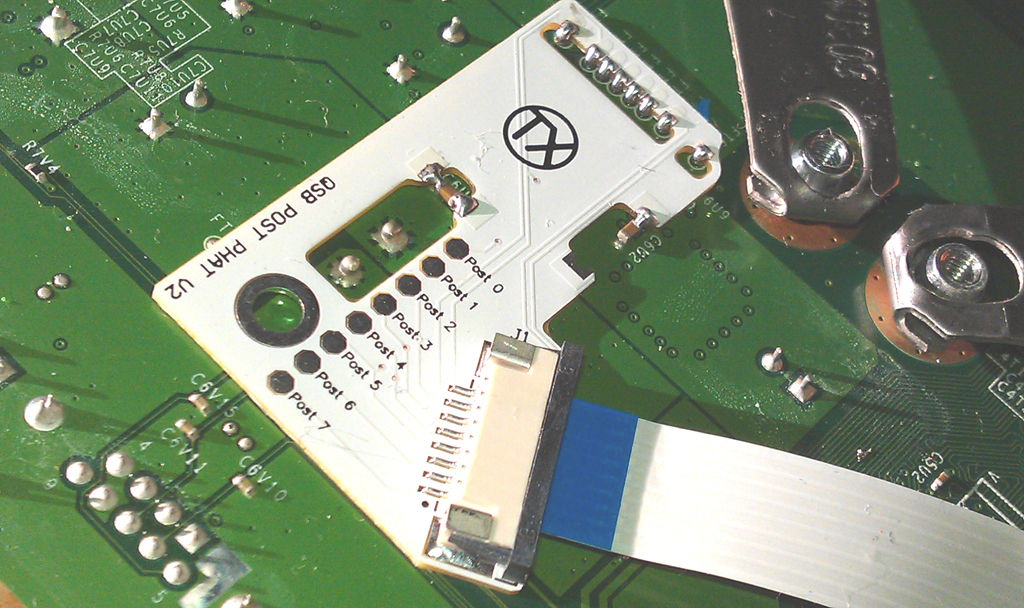

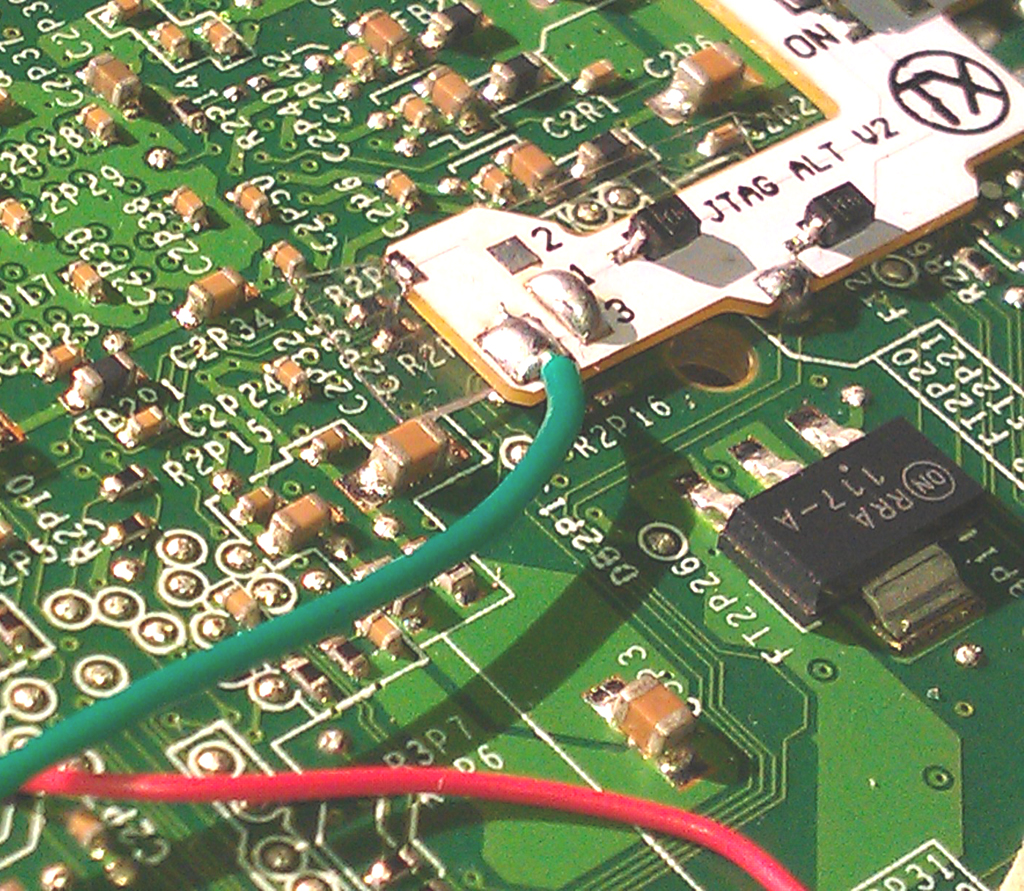

    Posto alcune foto dell'installazione. Il punto più in basso della qsb jtag non l'ho saldato perchè ho optato per la soluzione con AUD_CLAMP.
    Richiedo lumi a voi esperti, magari riuscite a notare qualcosa che mi sfugge.

    Jasper 512mb cb6754 R-Jtagnon avvia Xell-imag1428.jpgJasper 512mb cb6754 R-Jtagnon avvia Xell-imag1429.jpgJasper 512mb cb6754 R-Jtagnon avvia Xell-imag1430.jpgJasper 512mb cb6754 R-Jtagnon avvia Xell-imag1431.jpgJasper 512mb cb6754 R-Jtagnon avvia Xell-imag1432.jpgJasper 512mb cb6754 R-Jtagnon avvia Xell-imag1432pp.jpgJasper 512mb cb6754 R-Jtagnon avvia Xell-imag1434.jpgJasper 512mb cb6754 R-Jtagnon avvia Xell-imag1435.jpgJasper 512mb cb6754 R-Jtagnon avvia Xell-imag1436.jpgJasper 512mb cb6754 R-Jtagnon avvia Xell-imag1437.jpg
    Rispondi Citando Rispondi Citando

  2. 10-12-13 #2
    tonyamme
    tonyamme è offline
    Junior Member
    Data Registrazione
    Dec 2011
    Messaggi
    45
    Jasper 512mb cb6754 R-Jtagnon avvia Xell-imag1433.jpg

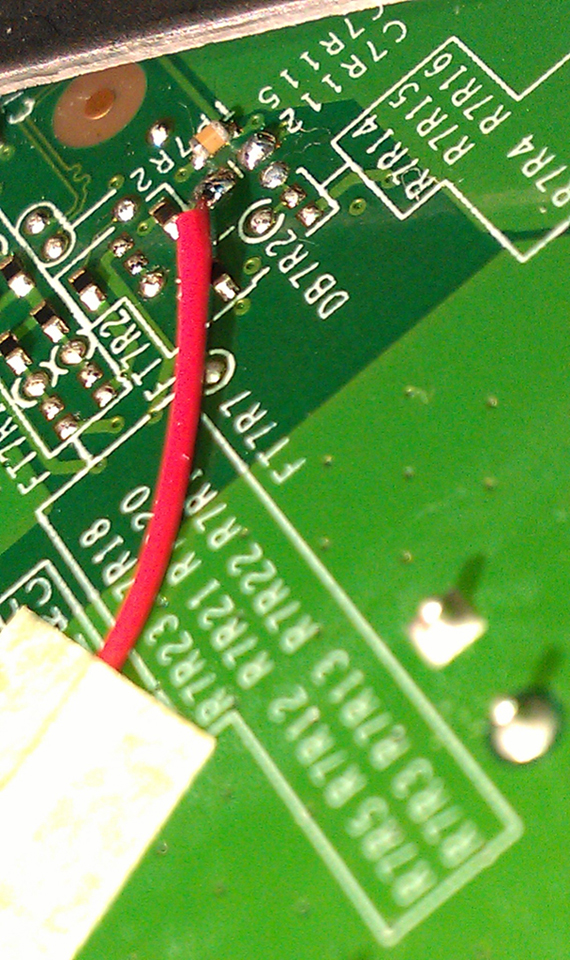

    Un'ultima immagine del lavoro. Come vedete ho utilizzato un cavo più fino per il punto CPU_RST. Inizialmente ho usato il cavetto blu in dotazione e poi ho fatto una prova con questo più fino.
    Rispondi Citando Rispondi Citando
  3. 10-12-13 #3
    zeruel85
    zeruel85 è offline
    God L'avatar di zeruel85
    Data Registrazione
    Jan 2012
    Messaggi
    15,946

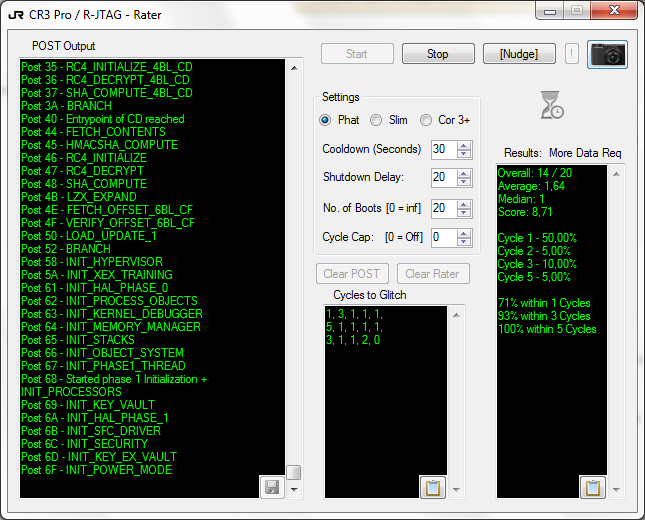

    Il log del Rater?
