Ciao ragazzi, mi hanno portato una falcon da fare r-jtag, montato il chip qsb jtag post ecc.
Con 0 dello switch jtag il chip lampeggia sempre come lampeggia il led verde centrale della console quando non c'è il lettore, con altre configurazioni lampeggia normalmente il chip ma non riesco a far partire lo xell.

Ho riportato tutto in originale per vedere se andava e andava e poi ho riflashato lo xell.

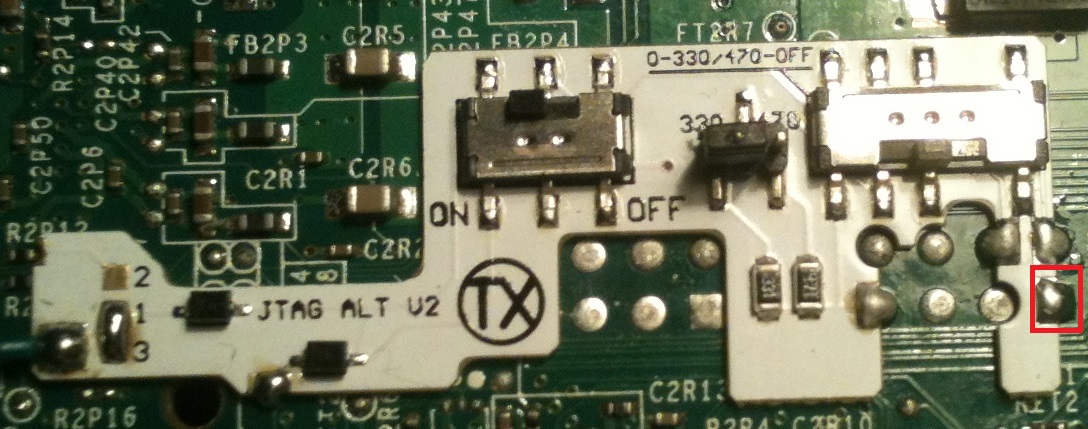

Il cliente aveva tentato r-jtag ma ha saltato un punto non sul qsb jtag ma sulla mobo.




Ho il jr-programmer v2 quindi copio e incollo qui il log del rater

Phat Selected
Version: 10
Power Up
Waiting for POST to change
Post 4B - LZX_EXPAND
Post 6B - INIT_SFC_DRIVER
Post 4B - LZX_EXPAND
Post CB
Post 4B - LZX_EXPAND
Post CB
Post 4B - LZX_EXPAND
Post 6B - INIT_SFC_DRIVER
Post EB
Post 6B - INIT_SFC_DRIVER
Post EB
Post 6B - INIT_SFC_DRIVER
Post EB
Post 6B - INIT_SFC_DRIVER
Post EB
Post 6B - INIT_SFC_DRIVER
Post EB
Post 6B - INIT_SFC_DRIVER
Post EB
Post 6B - INIT_SFC_DRIVER
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 08
Post 8C - Panic - SYSTEM_CALL
Post CC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 15 - FETCH_OFFSET
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post F8
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post AC - Panic - SIG_VERIFY_4BL_CD
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 15 - FETCH_OFFSET
Post 18 - FETCH_CONTENTS
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post F8
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post CC
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post CC
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 15 - FETCH_OFFSET
Post 18 - FETCH_CONTENTS
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 0C
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 15 - FETCH_OFFSET
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 15 - FETCH_OFFSET
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post CC
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 15 - FETCH_OFFSET
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 0C
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post CC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 15 - FETCH_OFFSET
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post CC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 18 - FETCH_CONTENTS
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 1A - RC4_INITIALIZE
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post F4
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 84 - Panic - INSTRUCTION_STORAGE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post BC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post CC
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post F8
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 84 - Panic - INSTRUCTION_STORAGE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 15 - FETCH_OFFSET
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 0C
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post CC
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6
Post 8C - Panic - SYSTEM_CALL
Post CC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 15 - FETCH_OFFSET
Post 1B - RC4_DECRYPT
Post 1C - SHA_COMPUTE
Post 1D - SIG_VERIFY
Post 1E - BRANCH
Post 20 - CB entry point reached
Post 21 - INIT_SECOTP
Post A0 - Panic - VERIFY_SECOTP_6

e se metto su 0 la qsb jtag mi da questo il rater

Phat Selected
Version: 10
Power Up
Waiting for POST to change
Post FD
Post F9
Post F1 - Panic - VERIFY_HEADER_CB_B
Post F0 - Panic - VERIFY_OFFSET_CB_B
Post E0
Post C0
Post 80
Post 4B - LZX_EXPAND
Post CB
Post 4B - LZX_EXPAND
Post 6B - INIT_SFC_DRIVER
Post 4B - LZX_EXPAND
Post EB
Post 4B - LZX_EXPAND
Post CB
Post 4B - LZX_EXPAND
Post CB
Post 4B - LZX_EXPAND
Post 12 - FSB_CONFIG_RX_STATE
Post FE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post FE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 48 - SHA_COMPUTE
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post FD
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post E0
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 88 - Panic - PROGRAM
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 80
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 8F - Panic - MAINTENANCE
Post 87 - Panic - ALIGNMENT
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post CC
Post 8C - Panic - SYSTEM_CALL
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post F8
Post FC
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 08
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 08
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 07
Post 87 - Panic - ALIGNMENT
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post F1 - Panic - VERIFY_HEADER_CB_B
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post F0 - Panic - VERIFY_OFFSET_CB_B
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post E0
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post F0 - Panic - VERIFY_OFFSET_CB_B
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post CC
Post 12 - FSB_CONFIG_RX_STATE
Post 60 - INIT_KERNEL
Post 8C - Panic - SYSTEM_CALL
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 10 - Payload/1BL started
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 08
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post E0
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 70 - INIT_VIDEO_DRIVER
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post F8
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post CC
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 0C
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 0C
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post FC
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post CC
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post FC
Post 11 - FSB_CONFIG_PHY_CONTROL
Post 12 - FSB_CONFIG_RX_STATE
Post 88 - Panic - PROGRAM
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post BC
Post 8C - Panic - SYSTEM_CALL
Post 10 - Payload/1BL started
Post 12 - FSB_CONFIG_RX_STATE
Post 8C - Panic - SYSTEM_CALL
Post E0
Post 12 - FSB_CONFIG_RX_STATE
Shutdown

Comunque domani metto le foto dell'installazione

Ragazzi sono le prime volte che faccio r-jtag e di quello che dice il rater non capisco una sega

[zeruel85]

Il Rater mi sembra cannato alla grande. Ricontrolla gli 8 postout intanto.

Inviato dal mio GT-I8150 utilizzando Tapatalk

[rf1911]

Il primo rater è giusto, lento e sporcato dal voltaggio selezionato sul chip. Controlla i dips, e misura i punti D, E e F. Prova a cambiare voltaggio sul chip. Il secondo è probabile tu senta le ventole fare venvenven molto veloce.

[zeruel85]

Posso chiederti come si capisce in questo caso che il Rater è giusto (quindi Postout corretti), ma è il voltaggio da cambiare? Guardi la sequenza da 10 fino al 21 per capire se i Postout sono corretti? E poi in base al restante output capisci che è il voltaggio il problema, tipo ad esempio 8C Panic SYSTEM_CALL?

Grazie.

[rf1911]

10-21 (A0), il resto è garbage...

[GAMEPLAYCONSOLE]

ok quindi non è la qsb jtag il problema

Per il qsb dei post ho provato anche a rifare le saldature.
Cmq adesso provo con un'altro voltaggio.

Ragazzi grazie per l'aiuto

Sono i primi r-jtag che faccio

[xboxbs]

se usi aud clamp ricorda la spunta in jrunner

[mario90]

Stesso problema io con un rjtag falcon. Non sono riuscito a far partire xell. Se ti parte fammi sapere come hai fatto xD

Inviato dal mio GT-I9070 con Tapatalk 2

[GAMEPLAYCONSOLE]

Un altra cosa, quando spengo la console, la console si spegne ma il led verde della console rimane acceso o lampeggia oppure devo tenere premuto il tasto e la console parte se no devo togliere e rimettere l'alimentatore ste cose le fa solo alcune volte

Comunque ecco le foto dell'installazione

[url=http://postimg.org/image/3vu1meus7/][/url]

[url=http://postimg.org/image/q96dmyl3r/][/url]

[url=http://postimg.org/image/e8kxm8dp3/][/url]

[url=http://postimg.org/image/88x6ikswn/][/url]

[url=http://postimg.org/image/lpy6ktmnb/][/url]

[url=http://postimg.org/image/faz5o5fxj/][/url]

[url=http://postimg.org/image/3pozgfug7/][/url]

[url=http://postimg.org/image/3of1n0smf/][/url]

[url=http://postimg.org/image/hqwzc1ar1/][/url]

[url=http://postimg.org/image/6onazural/][/url]

[url=http://postimg.org/image/5avo4js19/][/url]

[pocoyo2]

Hai abilitato Download in Background?

...dal mio padellone 2

[GAMEPLAYCONSOLE]

no nn l'ho abilitato.
Ragazzi scusatemi se nn mi sono connesso per vedere i messaggi sulla discussione ma avevo da fare 3 rgh su trinity e 2 corona

[GAMEPLAYCONSOLE]

Up..........

[fabiuz_78]

X il rol impazzito su R-jtag devi fare l aud-clamp


Inviato da xbox 360 usando Tapatalk

[mario90]

Anche la resistenza sul qsb jtag dá problemi al rol. Controlla che sia saldata bene

Inviato dal mio GT-I9070 con Tapatalk 2

[GAMEPLAYCONSOLE]

ok ho provato cn nand originale e da lo stesso problema del rol e si blocca sulla schermata xbox 360.

[mario90]

ok ho provato cn nand originale e da lo stesso problema del rol e si blocca sulla schermata xbox 360.

Allora è la resistenza. Capitato anche a me. Controlla bene e se necessario sostituiscila

Inviato dal mio GT-I9070 con Tapatalk 2

[GAMEPLAYCONSOLE]

ok grazie ragazzi adesso la sostituisco e vi faccio sapere

Ok risolto sostituendo la resistenza.
Comunque adesso rifaccio l'installazione di r-jtag con il mio awg30 rosso perchè non mi piace molto come l'ho fatta, di fretta.

Il rater adesso si ferma a AO quindi problema di glitch se non sbaglio.


Seeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee mi è parito xell, non ci credo quando lampeggiava il led verde io stavo in ansia e ho detto nn partirà mai lo xell ed è partito cn il dip 3.

Il rater si bloccava ad AO perchè mi ero scordato di mettere su on la basetta jtag.




Scritto il freeboot tutto bene avvii entro 10 sec
ma quando apro il carrello del lettore si blocca e devo spegnerla e riaccenderla

[GAMEPLAYCONSOLE]

Risolto tutto potete chiudere.
Ho spostato il chip sulla porta AV e non dà più problemi
Dip 3, 1v2 e avvii instantanei.

Dopo che ho sostituito quella resistenza è partita subito con il dip 3 e il rol va bene

Più tardi metto le foto (se mi incolla) su Fateci vedere le vostre installazioni RGH

[Razorbacktrack]

Ottimo,chiudo
