X360run glitchchip

**guerrierodipace** · 15-07-13

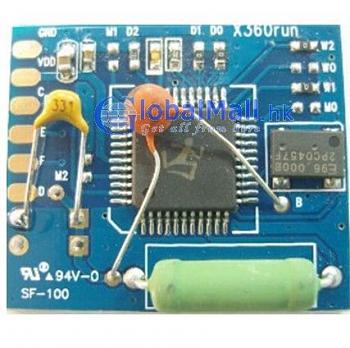

Comincia a circolare da qualche giorno un nuovo chip preconfigurato che sulla carta sembra interessante.
Vedremo se e quando qualcuno lo installerà.
Vi lascio le info che ho recuperato.
E' interessante che lavori con un oscillatore a 96Mhz come il DGX
Grosso limite è che non sia riprogrammabile.

Description:
X360Run Perfectly carcks XBOX360 slim
- It is perfectly compatible with all XBOX360 Slim machine
- It used the high performance and high frequency pulse-attack chip
- It has the more precisely pulse-attack boot time in an instant.
- It is comprehensive to upgrade and replace the Matrix Glitcher and Xecuter Coolrunner Glitcher Board.

Main Features:
- Support Corona and Trinity slim machine.
- High Performance of the pulse-attack chip, the working frequency can reach at 96MHz, the more precisely pulse-attack, and can be refined to adjust the attacking parameter.
- So far the least external components, using the high quality components to manufacture,perfect design and high reliability
- So far the Minimum PCB size, easily to install and fix
- So far the most simple installation and debugging, with the two pulse single line with 4-7cm
- By jumping the wire to make it short, yon can have machine selection and parameter adjustment ,it does not need to program by software.
- Boot time almost in 30 seconds.

X360run user manual:
Ⅰ.The theory of X360Run Glitcher Board：
The X360Run send out a confirm width of pulse to XBOX360 slim
machine. For different type XBOX360 slim machine have different type
pulse time point and width.

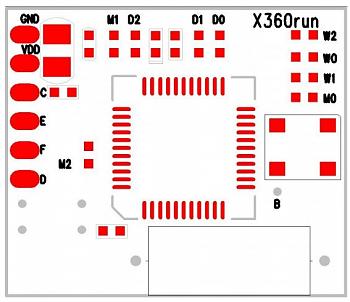

Ⅱ.The X360Run Glitcher Board and trimming switch:

Ⅲ.Configuration and trimming description：
The user must choose a different configuration options according
to the different type XBOX360 slim machine.
The user can use the factory default setting of the X360Run
Glitcher board.however,because of components and wire materials may
have little differences, different batch XBOX360 machine and X360Run
Glitcher board are also little differences,the user can use the
trimmability switch to get a better time pulse,and this change will
make XBOX360 machine achieve the best effective. X360Run Glitcher board have four type switch and trimming
adjustable setting:
(S: short the jumper pad , O

pen the jumper pad)

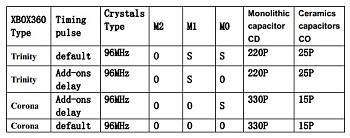

1. The XBOX360 slim machine type selection

According to the different type XBOX360 slim machine, set the
according M0,M1,M2 jumper pad with S or O. The value of capacitors about
CD and CO must set correct too . the factory default value is Corona default
96MHz.

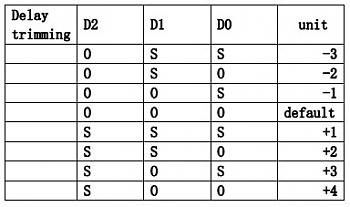

2. Pulse time delay trimming

The pulse time can be adjust to forward(forth:-1~-3) or
backward(back:+1~+4) on the basis of the factory standard value.

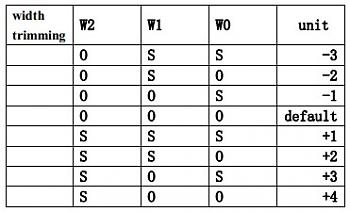

3. Pulse width trimming

The pulse width can be adjust to forward(forth:-1~-3) or backward
(back:+1~+4) on the basis of the factory standard value.
4. The adjustment of resistance and capacitance in the pulse signal output ：
The D pin of X360Run Glitcher board is pulse signal output, can
reduce the pulse signal strength by series resistance, the factory
default value is 8.2Ώ.
The D pin of X360Run Glitcher board is pulse signal output, can
produce an effect on launch XBOX360 slim machine succeed by shunt-wound
differences value of Monolithic capacitance, the factory default value
is CD=330pf(Corona) or CD=220pf(Trinity).
Attention!: if replace Monolithic capacitance,must weld the new
Monolithic capacitance complete before launch XBOX360 slim machine
again.

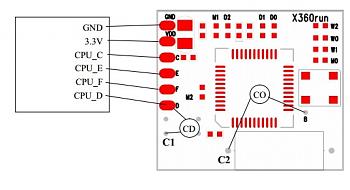

5.Wire Install：
X360Run Glitcher board have SIX wire to be connected，them are:
1. Power Wire: VDD,
2. Ground Wire: GND,
3. I2C_SCL(E),
4. I2C_SDA(F),
5. POST_OUT(C),
6. CPU_RST(D)
The 1—4 Wire direct connect to Glitcher board，about 10cm．
The 5-6 Wire direct connect to Glitcher board，about 4cm to 7cm.can
adjustment the length of 5-6 Wire in 4cm to 7cm carefully,then get the
best effect.
Ⅳ.The weld of changed XBOX360 slim machine
1. Corona-V1, Corona-V2

“CPU_C”to“C” wire about 4cm to7cm；
“CPU_D”to“D” wire about 4cm to7cm；
The shunt-wound Monolithic capacitance CD [330pf(Corona) or
220pf(Trinity)],one pin weld to C1 point, another pin weld to a point
between D point and C2 point.
The length of two pins about CD capacitance don’t cut to short.
