Salve a tutti, sono giorni che sto impazzendo con sta zephyr per far funzionare R-JTAG. Pensavo fosse la definitiva salvezza per jtaggare questa console, invece mi devo ricredere.
Non ne vuole sapere, di bootare. Glitcha un po' e poi RROD 0010 sempre.
DEVO ancora recuperare CPU-KEY, quindi sto cercando di fare di tutto per far partire sto benedetto XELL, almeno una volta...

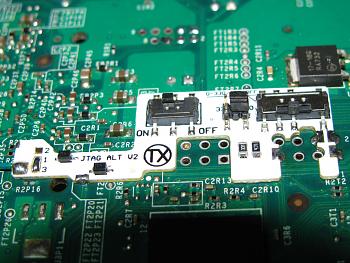

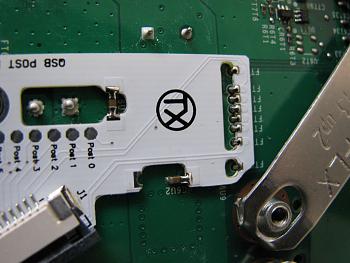

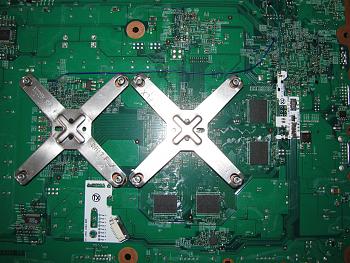

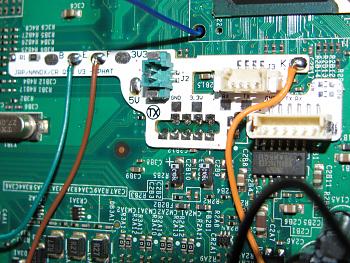

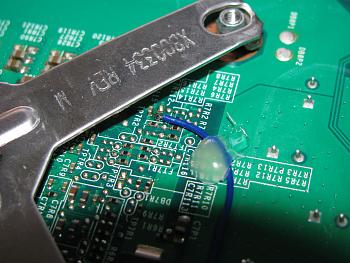

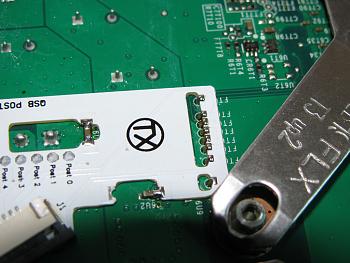

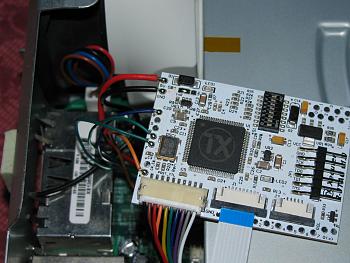

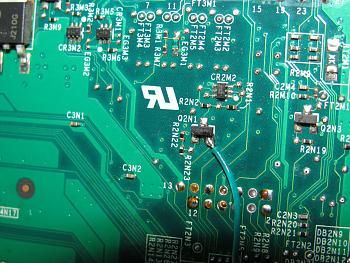

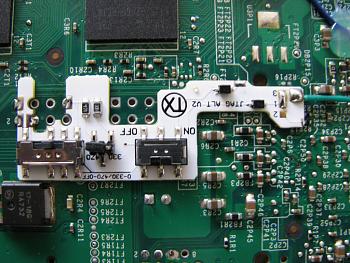

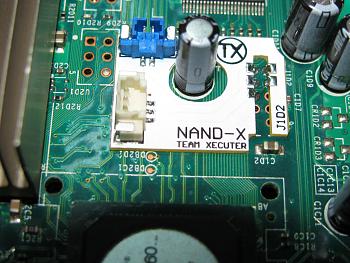

Vi lascio i dettagli della discussione con foto, log e prove che ho fatto nel forum Xecuter, giusto per non ricopiare il tutto qui.
[url=http://team-xecuter.com/forums/showthread.php/136108-R-JTAG-Zephyr-no-XELL-and-RROD-0010-always]R-JTAG Zephyr: no XELL and RROD 0010 always!![/url]!!
Vi dico solo che ho provato orami quasi tutto, non mi resta che togliere AUD_CLAMP e provare cosi, o fare prove con un RST alternativo (che ho gia provato un paio di volte con medesimo risultato) con cavo schermato.
Non so piu cosa pensare, gia con RGH2 era impossibile. Se lo è anche con R-JTAG, allora le Zephyr le possiamo pure mettere al bando tutte. Infatti anche sul sito Xecuter, alcuni con le zephyr hanno il mio stesso problema, e non ho letto ancora di SUCCESS con sta console.

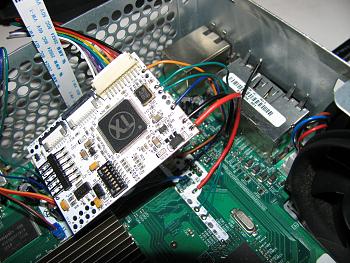

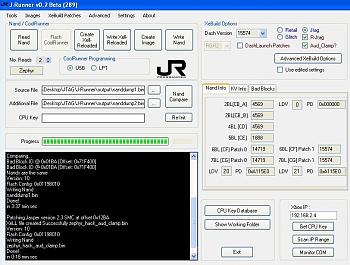

Oltre alle foto vi lascio anche un paio di POST log che ho fatto con J-runner, dove ci sono le differenze piu significative, per il resto dei DIP è tutto simile.
(470+AUD_CLAMP+NO VOLTAGE JUMPER)
DIP 5+8 ON = 7 blink + RROD 0010
Codice:Version: 10 Press Escape to exit Waiting for POST to change Post 30 - VERIFY_OFFSET_4BL_CD Post 30 - VERIFY_OFFSET_4BL_CD Post 20 - CB entry point reached Post 30 - VERIFY_OFFSET_4BL_CD Post 30 - VERIFY_OFFSET_4BL_CD Post 30 - VERIFY_OFFSET_4BL_CD Post 30 - VERIFY_OFFSET_4BL_CD Post 30 - VERIFY_OFFSET_4BL_CD Post 30 - VERIFY_OFFSET_4BL_CD Post 30 - VERIFY_OFFSET_4BL_CD Post 30 - VERIFY_OFFSET_4BL_CD Post 30 - VERIFY_OFFSET_4BL_CD Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 20 - CB entry point reached Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 30 - VERIFY_OFFSET_4BL_CD Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY ... <- breve pausa Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 13 - FSB_CONFIG_TX_STATE Post 14 - FSB_CONFIG_TX_CREDITS Post 15 - FETCH_OFFSET Post 16 - FETCH_HEADER Post 17 - VERIFY_HEADER Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1A - RC4_INITIALIZE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 13 - FSB_CONFIG_TX_STATE Post 14 - FSB_CONFIG_TX_CREDITS Post 15 - FETCH_OFFSET Post 16 - FETCH_HEADER Post 17 - VERIFY_HEADER Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1A - RC4_INITIALIZE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post C0 Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 13 - FSB_CONFIG_TX_STATE Post 14 - FSB_CONFIG_TX_CREDITS Post 15 - FETCH_OFFSET Post 16 - FETCH_HEADER Post 17 - VERIFY_HEADER Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1A - RC4_INITIALIZE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 13 - FSB_CONFIG_TX_STATE Post 14 - FSB_CONFIG_TX_CREDITS Post 15 - FETCH_OFFSET Post 16 - FETCH_HEADER Post 17 - VERIFY_HEADER Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1A - RC4_INITIALIZE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 13 - FSB_CONFIG_TX_STATE Post 14 - FSB_CONFIG_TX_CREDITS Post 15 - FETCH_OFFSET Post 16 - FETCH_HEADER Post 17 - VERIFY_HEADER Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1A - RC4_INITIALIZE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 20 - CB entry point reached Post 20 - CB entry point reached Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 13 - FSB_CONFIG_TX_STATE Post 14 - FSB_CONFIG_TX_CREDITS Post 15 - FETCH_OFFSET Post 16 - FETCH_HEADER Post 17 - VERIFY_HEADER Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1A - RC4_INITIALIZE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 20 - CB entry point reached
(470+AUD_CLAMP+1,2V)
DIP 5+8 ON = 8 blink + RROD 0010
Codice:Version: 10 Press Escape to exit Waiting for POST to change Post 78 - INIT_STFS_DRIVER Post 78 - INIT_STFS_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 78 - INIT_STFS_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 78 - INIT_STFS_DRIVER Post FC Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 70 - INIT_VIDEO_DRIVER Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 70 - INIT_VIDEO_DRIVER Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 15 - FETCH_OFFSET Post 16 - FETCH_HEADER Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 78 - INIT_STFS_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 7C Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 40 - Entrypoint of CD reached Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 10 - Payload/1BL started Post 12 - FSB_CONFIG_RX_STATE Post 70 - INIT_VIDEO_DRIVER Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 40 - Entrypoint of CD reached Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 10 - Payload/1BL started Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 12 - FSB_CONFIG_RX_STATE Post 13 - FSB_CONFIG_TX_STATE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 10 - Payload/1BL started Post 11 - FSB_CONFIG_PHY_CONTROL Post 18 - FETCH_CONTENTS Post 19 - HMACSHA_COMPUTE Post 1B - RC4_DECRYPT Post 1C - SHA_COMPUTE Post 1D - SIG_VERIFY Post 1E - BRANCH Post 20 - CB entry point reached Post 21 - INIT_SECOTP Post A0 - Panic - VERIFY_SECOTP_6 Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 70 - INIT_VIDEO_DRIVER Post 30 - VERIFY_OFFSET_4BL_CD
