Firmware 1.5 per Matrix Glitcher II con supporto Corona 16MB

**DieFreiheitOderTod** · 17-07-12

Matrix Glitcher II firmware upgrade v1.5
----------------------------------------

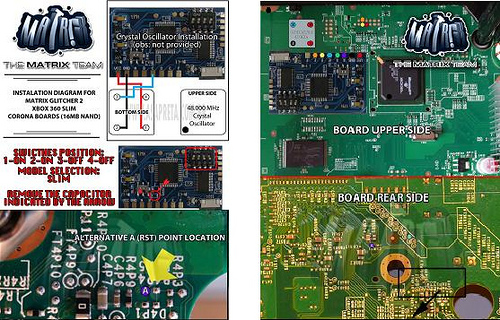

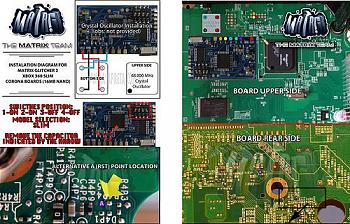

- Added Corona motherboard compatibility (see installation
diagram at [url=http://infinitymod.com]The MATRiX Team - Home of the matrixglitcher360 and matrix nand programmer[/url] ).

To Upgrade :

- Place all 4 switches in the OFF position to place the Matrix Glitcher II in
update mode.
The blue led should start flashing to signal update mode (you might need to
cycle power supply or turn your xbox360 off and on again if it doesn't).

- Connect the Matrix USB external programmer to the Glitcher II using the
4 pins flat cable and to your PC using a mini-USB cable.

- Launch the included program.
The upgrade program will automatically scan all available COM ports until
it finds a Glitcher II and start the firmware upgrade.
A green screen will signals the successfull completion of the upgrade
process.

- Disconnect the flat cable from the Glitcher II and set the 4 switches
according to your Xbox 360 model.

Quick switch settings chart :

SW 1 2 3 4

ON ON ON ON ZEPHYR
ON OFF ON ON FALCON
ON ON OFF ON OPUS
ON OFF OFF ON JASPER
ON ON ON OFF TRINITY
ON OFF ON OFF PHAT RGH 2.0
ON ON OFF OFF CORONA
OFF OFF OFF OFF UPDATE MODE

Download: : [URL="www.infinitymod.com/Download/MG2-CORONA16MB.zip"]Matrix Glitcher II firmware upgrade.[/URL]

**userx87** · 18-07-12

bene! si sono svegliati

**KMetal** · 18-07-12

Bene erano mesi che non vedevo news targate Team Matrix. Ottimo per chi ha il matrix II e vuole montarci un quarzo per utilizzarlo sulle corona. Resta solo da capire una cosa: i tempi di glich con questa soluzione di quanto si discostano rispetto ai tempi dei CPLD + recenti tipo lo storm v2?
