360MaxAim 1.2 - beta testers needed

[Raiden]

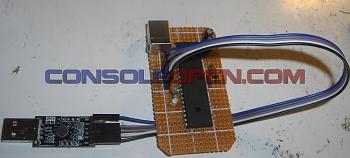

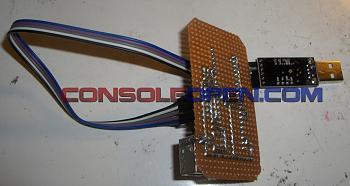

Una prima realizzazione:

[fabiaiz]

scusate mi spiegate come funziona? non ho capito come la tastiera e il mouse si connettono all'xbox
ok visto il video e capito

[fabiaiz]

ho fatto tutto ma non capisco, l'rst dove lo collego?

[jowadmax]

ho fatto tutto ma non capisco, l'rst dove lo collego?

Leave it not connected.
The only 3 wires you need to connect are:
1- GND on Kit --> GND on UART
2- RC6 on Kit --> TX on UART
3- RC7 on Kit --> RX on UART

This is everything you need to connect to get it working on StartUSB kit!

[fabiaiz]

Leave it not connected.
The only 3 wires you need to connect are:
1- GND on Kit --> GND on UART
2- RC6 on Kit --> TX on UART
3- RC7 on Kit --> RX on UART

This is everything you need to connect to get it working on StartUSB kit!

But i haven't startusbkit i made it my self.
in this picture it's also connected rst
[url]http://www.consoleopen.com/forum/attachments/hack-xbox-360-e-xbox-360-slim/3127d1332491924t-360maxaim-1-2-beta-testers-needed-43858977.jpg[/url]
